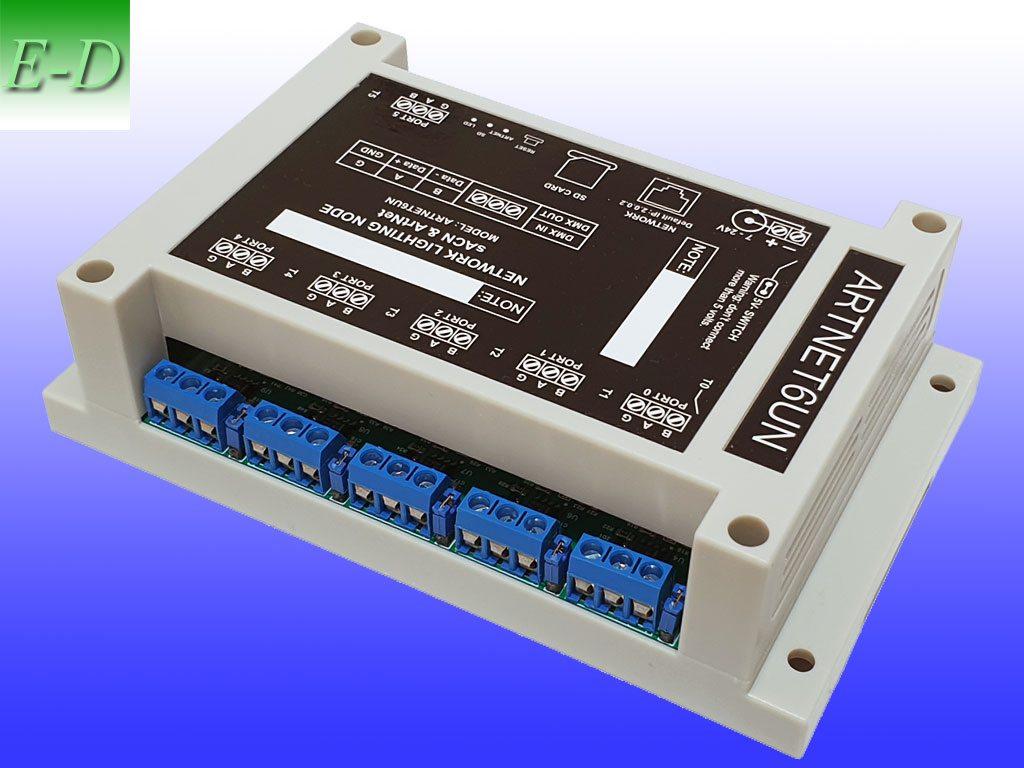

ARTNET6UN, Ethernet Art-Net/sACN (E1.31) to six DMX output & input ports

Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging Brand: Electron-Design Rack Mountable: No Type: Signal Converter Dmx Control: Yes Model: ARTNET6UN Manufacturer Warranty: 1 yea ...Read more

$94.00 each
$89.00 per unit for buying at least 2
$85.00 per unit for buying at least 10

Add to cart

Downloads Pdf document
Download image 2.2.09

Description
Specifications

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging	Brand:	Electron-Design
Rack Mountable:	No	Type:	Signal Converter
Dmx Control:	Yes	Model:	ARTNET6UN
Manufacturer Warranty:	1 year	MPN:	ARTNET6UN
Country/Region of Manufacture:	Israel	UPC:	7295122914165

Package included :
1x Controller

Network to DMX controller.
Six DMX ports.
Art-Net III support (unicast and broadcast).
E1.31(sACN) multicast network protocol.
Works with all Art-Net and sACN compatible software, both free & commercial. (FreeStyler, Madrix, Jinx, LoR(E1.31) ..........)
Up to 6 output or up to 6 input DMX 512 ports.
Management web server for the controller settings.
10/100 Ethernet port.
7V-24V or 5V power supply. Note: check the voltage of your strip!
ARM 32 CPU
Size: 145 x 90 x 50 mm. Weight: 170 grams. Installation on DIN rail 35 mm.
Art-Net, E1.31 compatible software. FreeStyler, Madrix, Jinx,...
Supports firmware upgrade.

Examples one controller

Examples Wireless

Examples output-input.

Examples one or more controller.

Device configuration page.

Port configuration page.

Madrix ArtNet device manager.

Madrix DMX device manager.

Madrix and ACN (E1.31).
